Note For 10/29/30
Replaces Technics Part #
SFDZ122N11 or SFDZ122N11-1
This is for 10 (TEN) pitch controls Part # SFDZ122N11-2
Center Zero "Click" option. Select "With Click" or "Without Click" Regardless of choice Green light will still come on when at the Zero position.

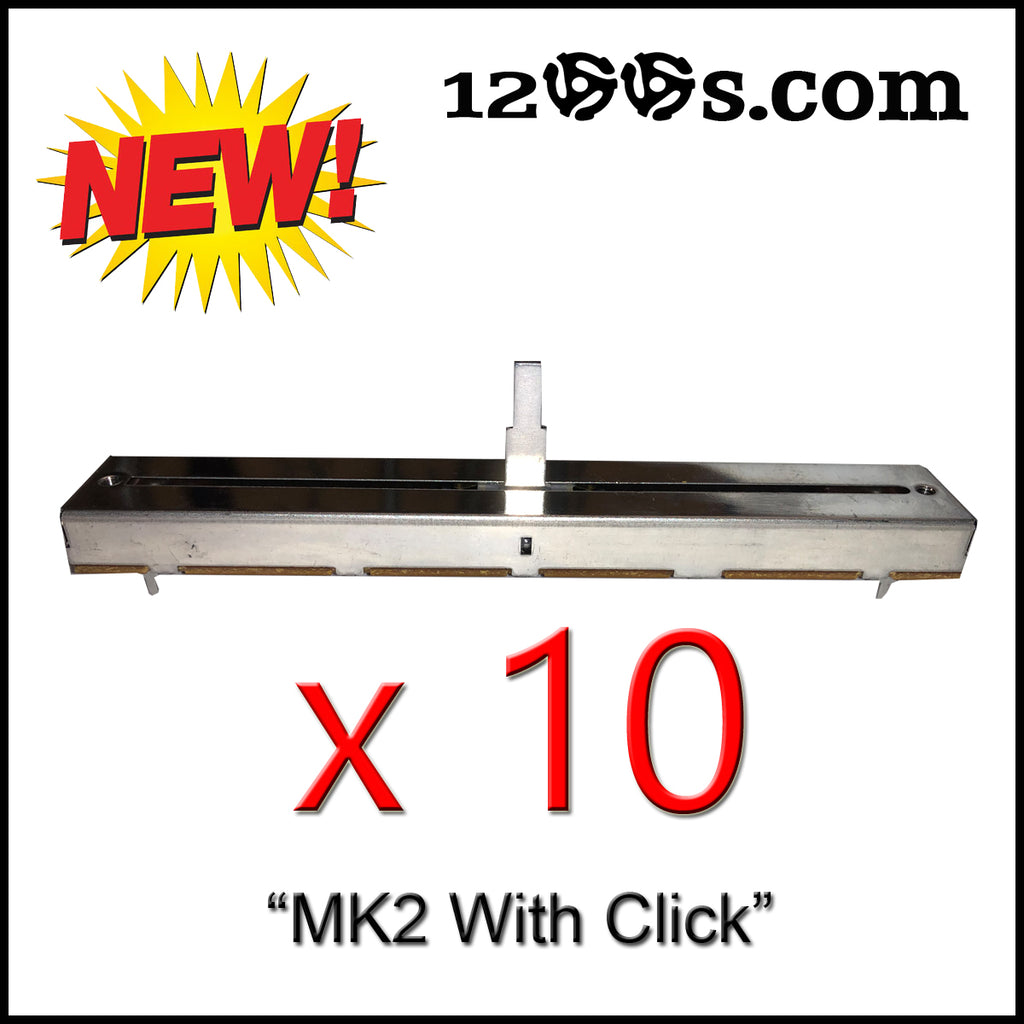

SFDZ122N11-2 replacement pitch fader suitable for Technics SL1200Mk2 / SL1210Mk2, it has the 0% click and 0% quartz lock feature meaning the LED will illuminate at the central 0% position.
These faders are the -2 version that are preferred by DJ's due to the shorter +/- 0.5mm travel around the center 0% quartz lock point and can be used to replace any version of pitch fader fitted to SL1200Mk2 / SL1210Mk2 even the early 6 pin version if you also replace the pitch PCB available here.
Modern manufacturing techniques and materials have allowed general improvements to made over the original Panasonic / ALPS supplied fader, these include 10% overall tolerance, operating cycles increased to 15K and a more consistent carbon track application which means that these faders will not only be closer to the stated 22K resistance value but also closer to the stated resistance taper(*see below) leading to more consistent calibration, In addition to these general improvements our version also has (like the original Panasonic supplied part) the two slick dummy tracks for the 0% lock switch contacts of the slide to run on rather than just running on the bare board.
* The correct / preferred resistance taper has been used on this fader which equates to easier calibration** , these have been extensively tested and bench marked against both Panasonic supplied versions and other aftermarket replacements (both -1 and -2) currently available to ensure we are supplying the best possible product with the best possible performance.
**Subject to the normal circuit tolerances.
These are aftermarket / replacement / compatible faders that have not been supplied by or endorsed by Panasonic, they have been manufactured to a very high standard , close tolerance and ROHS compliance by an ISO certified factory therefore quality and a long life span is assured thus we are more than happy to offer a no quibble money back guarantee in the knowledge that this guarantee will not be needed.
Note: With all bulk order / discounts retail packaging is not supplied. Units will be wrapped securely without retail boxes.
