Technics 1200 / 1210 Turntable Main Board / Mainboard with Motor (MK2 / MK3 / M3D / MK3D / MK5) aka Motherboard

Panasonic / Technics

Technics 1200 / 1210 Turntable Main Board / Mainboard with Motor (MK2 / MK3 / M3D / MK3D / MK5) aka Motherboard

In Stock!
$350.00 USD $399.99 USD

Authentic Technics 1200 / 1210 MK2 / M3D / MK5 Main Board with Motor

Will Fit Technics 1200 or 1210 MK2, MK3, M3D, MK3D & MK5 models.

This item was removed from a working unit and fully bench tested and meets factory specs.

Please note: Check color of plugs according to the following information below.

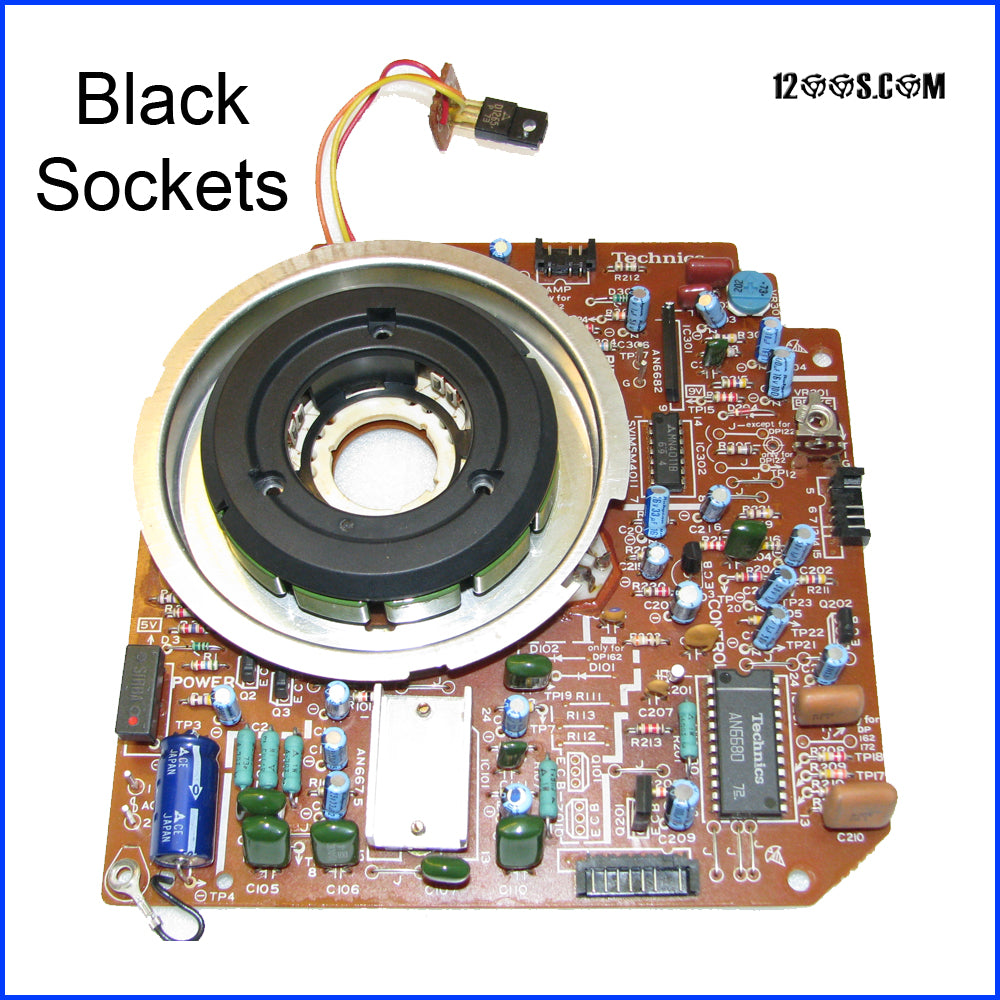

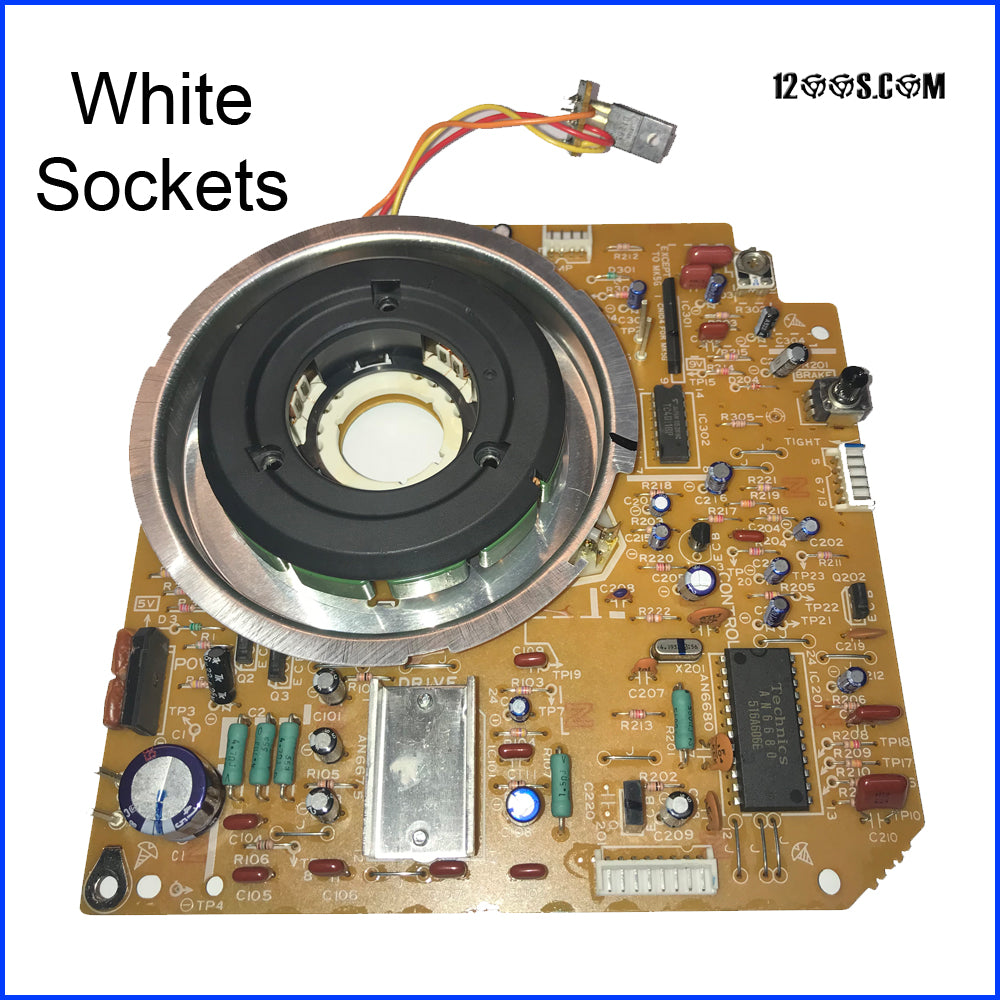

Scenario # 1 = If your plugs on your components (i.e. Pitch Control, Target Light, or Start / Stop assembly) have WHITE plugs then the Main Board can have either Black or White receiving Sockets.

Scenario # 2 = If your plugs on your components (i.e. Pitch Control, Target Light, or Start / Stop assembly) have Black plugs then the Main Board must have ONLY Black receiving Sockets.

Summery:

In other words the Black Receiving sockets on the Main Board can take either the Black or White Plug Components where the White receiving sockets on the Main Board can ONLY take White.

Note: This part has been discontinued and limited stock is available. Due to the delicate nature of this item and the many components involved we will not accept returns. All sales are final.
